Getting an overview of the active project

This page explains the HOLOPLOT system design, its presets, and beam configurations using the Project Details tab in the Project Information section. On the Signal Flow tab, you'll learn about the signal path, starting with RAVENNA Receiver Streams and going to Processor outputs if third-party speakers are used.

Project Details

The Project Details tab provides a comprehensive overview of the currently active project in the controller, presenting available presets and beam configurations for each preset. This section is designed specifically for users involved in the system setup and live operation stages of the workflow who may not be engaged in the system design phase. This section will adjust accordingly whenever a new system is activated in the controller.

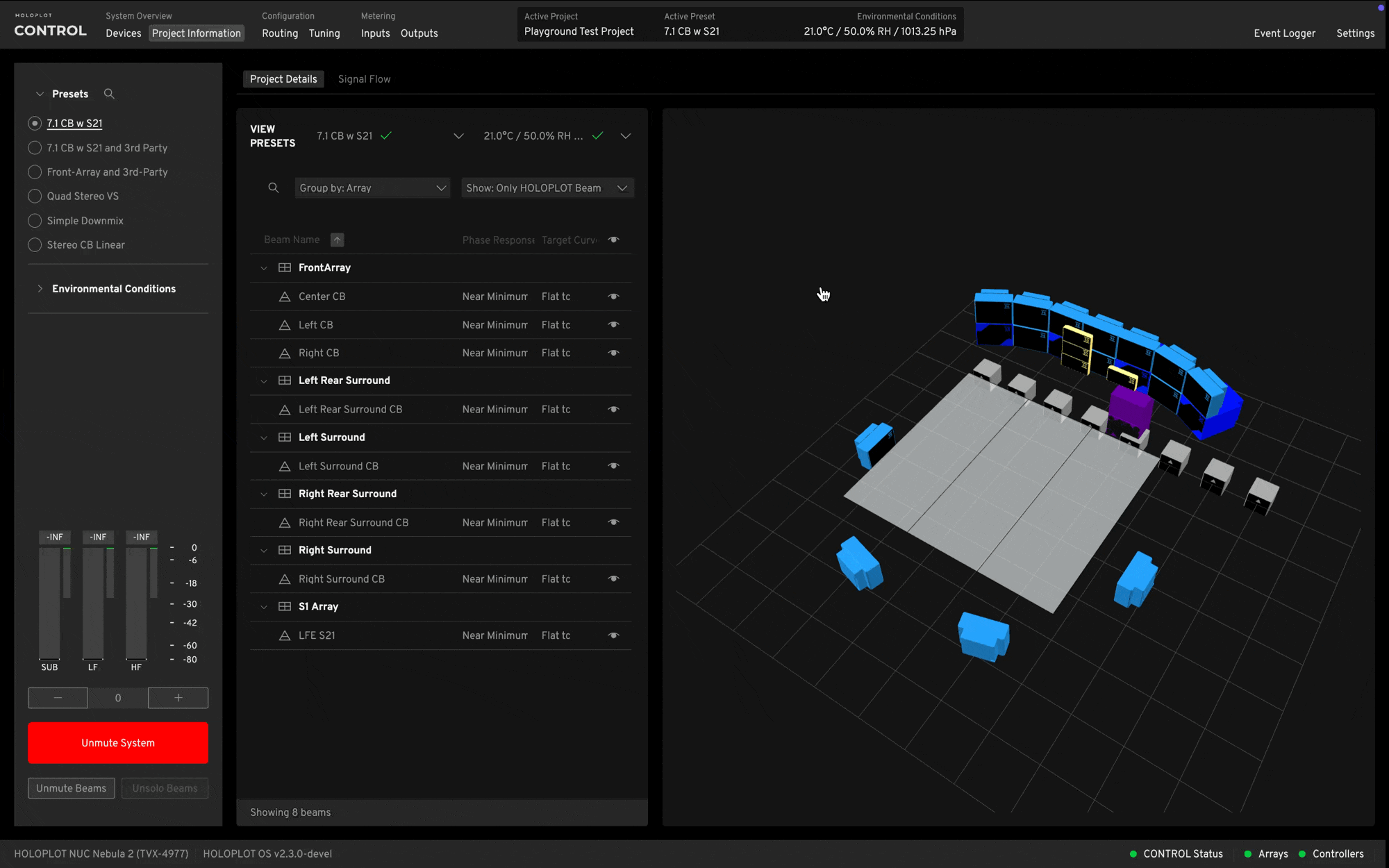

Project Details – Visualizing Presets, Environmental Conditions and Beams

Left panel The left panel table displays all the beams available for each preset and environmental condition. It can be sorted by audio inputs, beam groups, and arrays. The table also contains the key parameters of each beam.

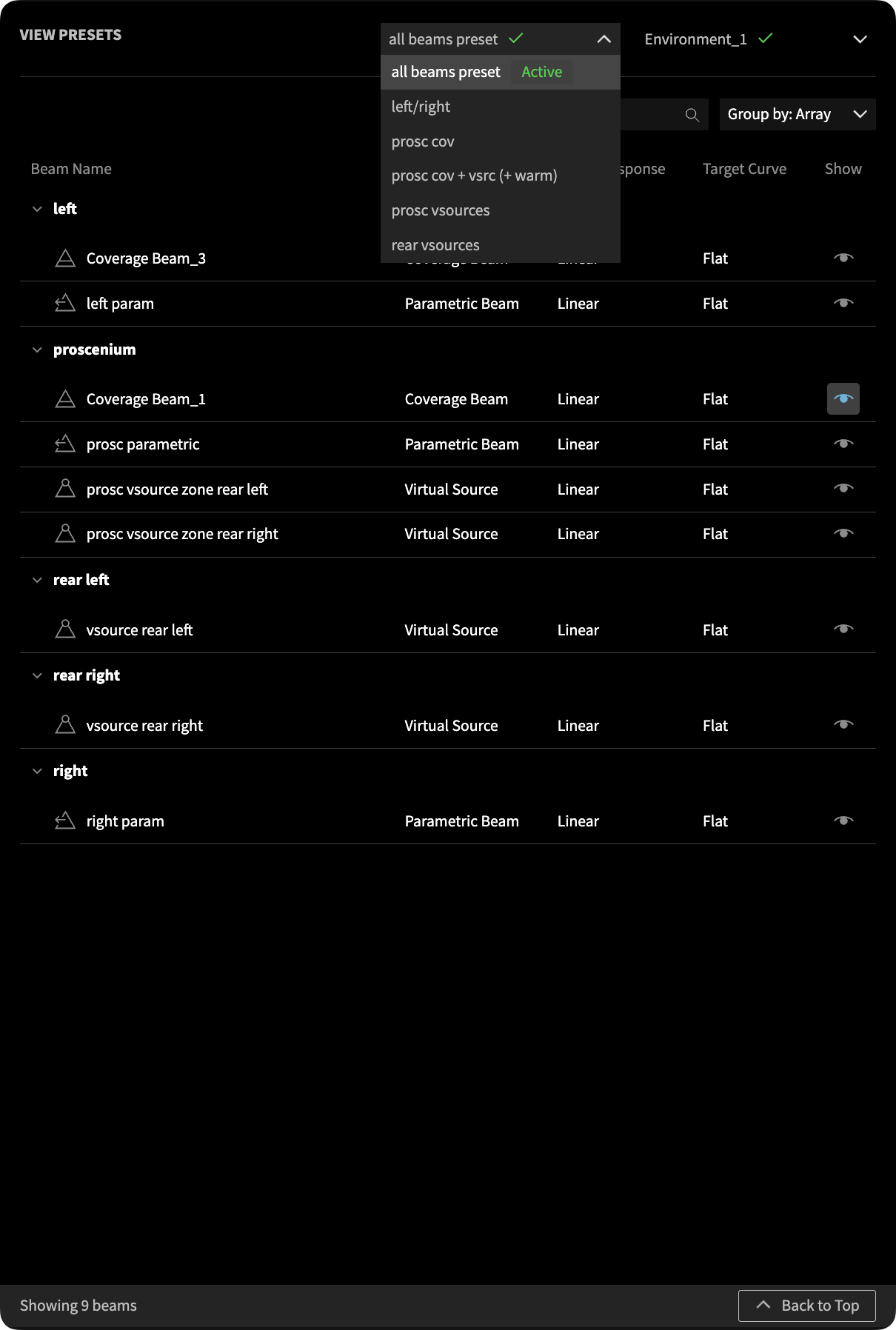

Left Panel - Available Presets

Viewport It shows the 3D representation of the system design. Users can also highlight a beam and obtain a visualization of the source (arrays) and target (audience areas).

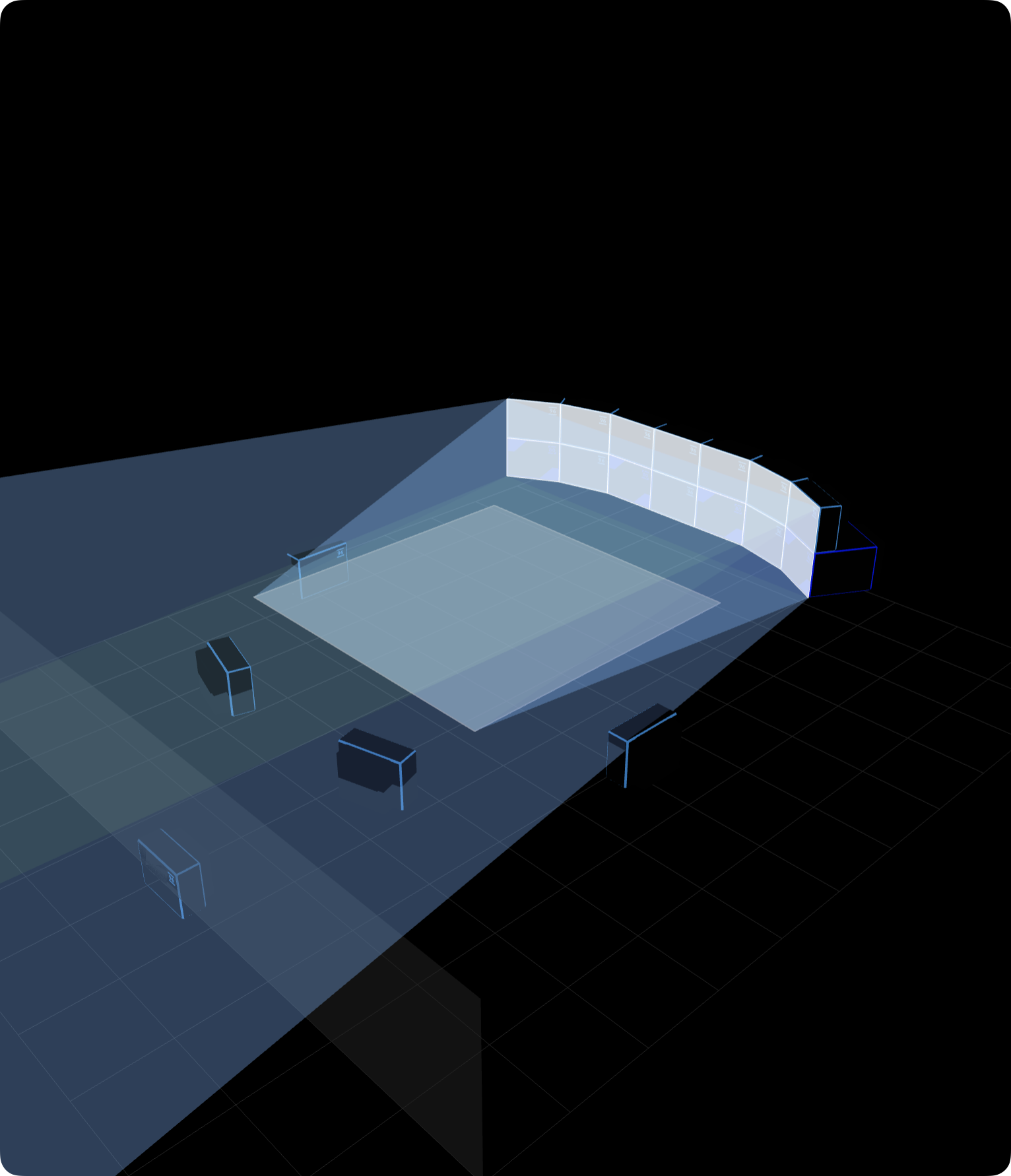

Viewport - Highlighting a Beam

Beam properties panel When selecting a beam, the following information is available:

  • Beam type

  • Phase response

  • Target curve

  • Air absorption compensation

  • SPL drop

  • Input signal

  • Performance target (only for Parametric Beams)

  • Gain and delay

  • Connected audio inputs and arrays

  • Zones

Coverage Beam Properties

Signal Flow

The Signal Flow tab offers a detailed overview of the signal path, starting from various audio sources (RAVENNA streams or analog inputs), the beams, arrays, and Sender streams when setting up a system with third-party speakers. This section allows for quick identification of connections between audio inputs, beams, and arrays.

The tab displays all entities used by HOLOPLOT, including Streams, Audio Inputs, Beams, Arrays, and Processor Outputs for a selected Preset. To highlight the connections between these entities, click on any node, and the unrelated entities will be filtered out.

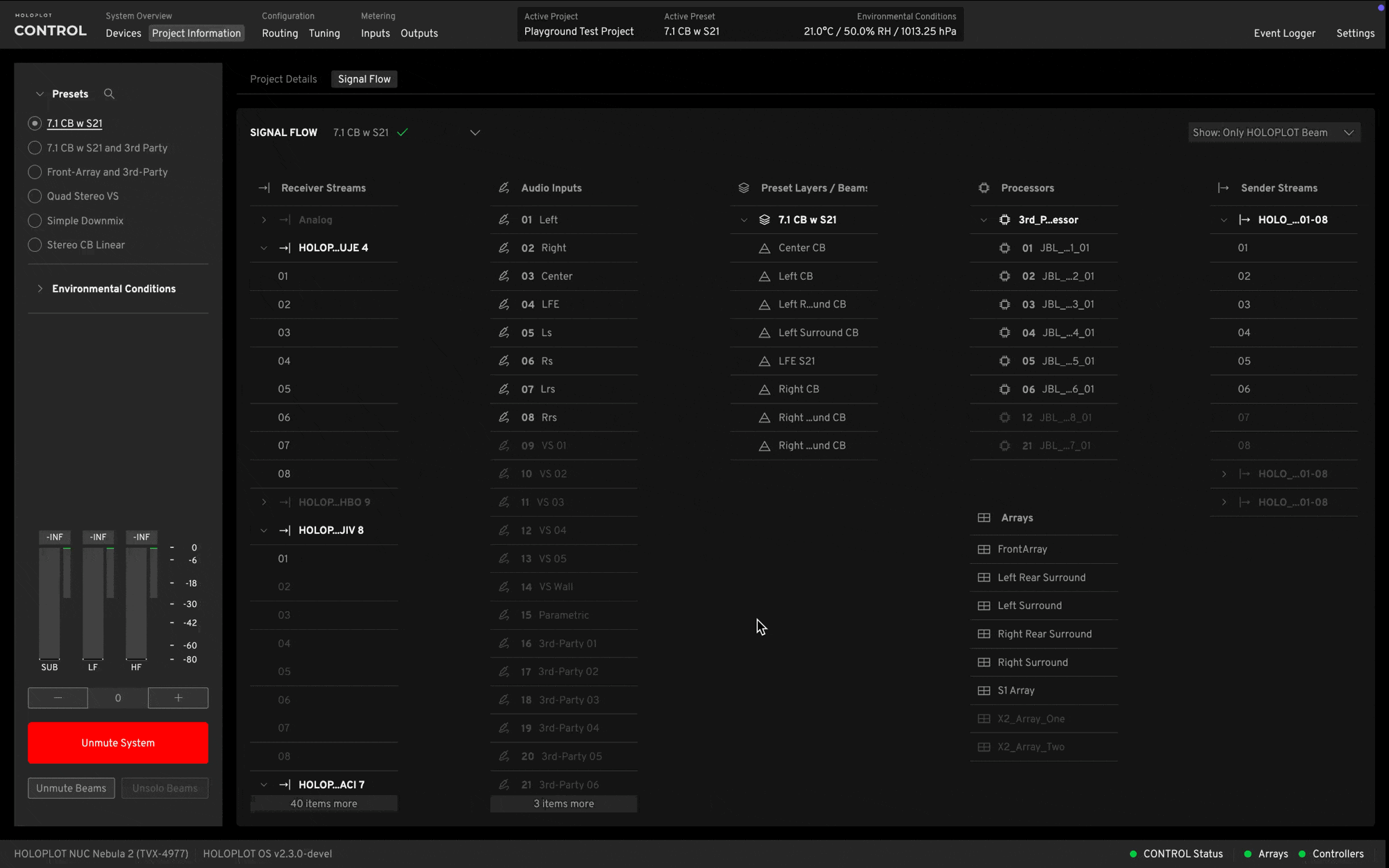

Signal– Understanding the signal path in a HOLOPLOT system
