Creating a Coverage Beam

Coverage Beams create custom directivity patterns by targeting zones as areas to cover or avoid. You can specify the spectral and temporal properties of the beam and consider custom room temperature and humidity factors. The key difference between Coverage Beams and Parametric Beams and Virtual Sources is that Coverage Beams undergo a cloud-based optimization process that is calculated based on the zones and parameters added by you. Therefore, you should have a stable internet connection anytime you want to optimize a Coverage Beam.

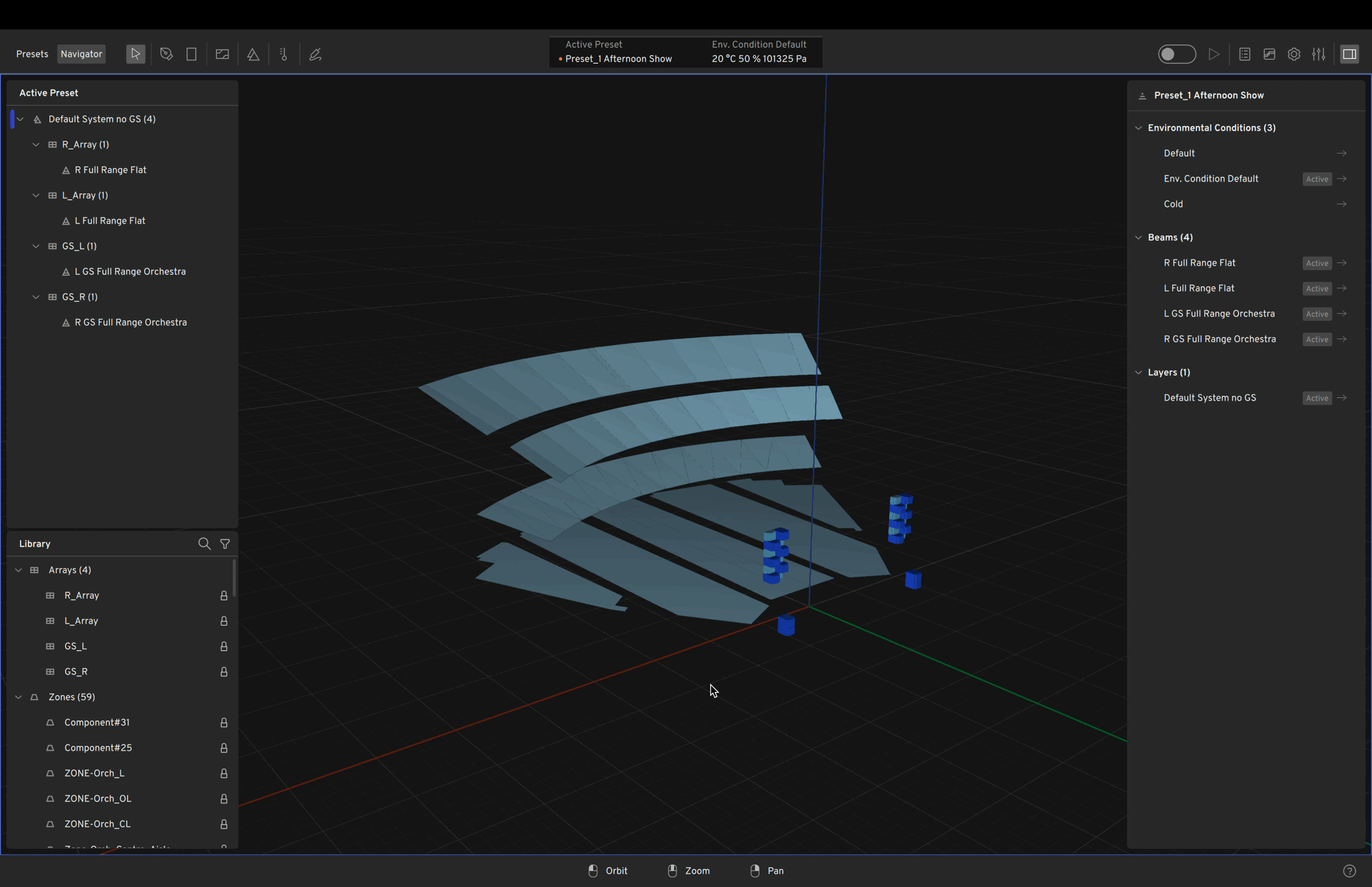

You can create and optimize up to five Coverage Beams per array. To add a Coverage Beam to your Array, you must first add an Array using the Create Array option in the toolbar. Next, click Create Coverage Beam in the contextual menu. Once a Coverage Beam is created, you will see the Properties Panel appear on the right, where you can add parameters specific to that beam.
