X1 custom rigging

PreviousX1 Standard rigging lifting proceduresNextVenue validation

Last updated 10 months ago

Was this helpful?

Integration information

HOLOPLOT's standard rigging is designed for modules in landscape orientation. Custom solutions are required for arrays with modules in portrait orientation.

  • To safely rig an MD96, at least four of the eight available M10 rigging points must be used together, and at least two on each side of the Audio Module (left and right).

  • To safely rig the MD80-S, all eight M10 points must be used together.

Each rigging screw shall be fixed with an appropriate torque not exceeding 65 Nm.

Areas not to be covered

A custom rigging system should not cover any loudspeaker drivers at the front of the Audio Module.

The four infrared transceivers on the sides of the module should not be covered. Obstructing these sensors will prevent the module from automatically recognizing and configuring its position within a Matrix Array.

If automatic configuration is unavailable due to obstructed infrared transceivers, the Audio Module position can be configured manually via HOLOPLOT Plan.

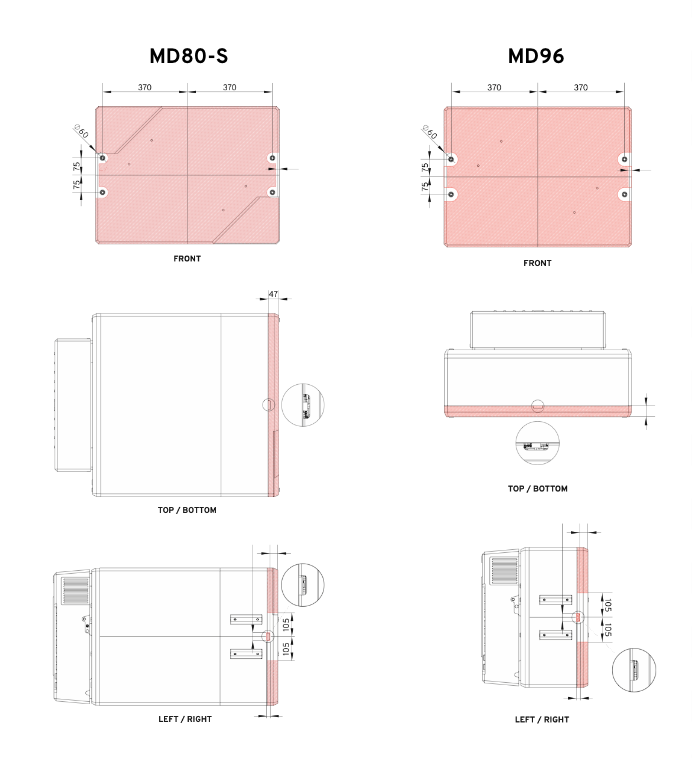

The areas not to be covered are shown in red in the illustrations below, along with relevant dimensions.
