On this page, you will find detailed instructions on the available actions at system, module, and beam levels using HOLOPLOT Control.
As the name suggests, this reflects the system's current operational status, including system gain and mute states. These are available on the Control Panel:

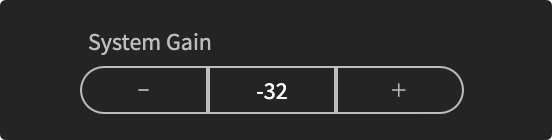

Click the + and – buttons to increase or decrease system gain 1dB at a time.
Enter a desired gain value and press the Enter key to confirm. If you increase or decrease the gain by more than 3 dB, HOLOPLOT Control asks for confirmation of the action.
Easily mute and unmute all arrays.
In the Device List section's right panel, you can apply actions at a 1) module-specific, 2) array-specific, or system-wide level. These actions can be applied to one module at a time, to a selected array, or all modules. The available actions are:
When a module sleeps, it does not play any sound nor display any information on the output meters.
HOLOPLOT Control has multiple sections where you can mute or solo beams. These buttons can help you quickly identify if any beams are muted or soloed in the presets and unmute or unsolo them. These buttons are particularly useful after the tuning stage of the workflow.
The Unmute Beams and Unsolo Beams buttons are enabled only when at least one beam is muted or soloed. This guarantees no beams are muted or soloed by mistake in any of the workflow’s steps.
